Xt -50 Izohlash Notch Projektor

XT-50 impact testing specimen notch broaching equipment is a special optical instrument designed and developed by our company according to ASTM E23-07a Standard Test Methods for Notched Bar Impact Testing of Metallic Materials and GB/T229-2007Metallic materials-Charpy pendulum impact test method on the requirements of the impact specimen notch, which is used to check the processing quality of Warpy v- va U-tipdagi ta'sir namunalari .

1. kattalashtirish: 50 marta;

2. zobit uskunalari Ekranlari: 200mm;

3. Ishbeh hajmi:

Kvadrat stol: 110 × 125mm

Davra suhbati: 90mm

Ish dasturi shisha diametri: 70 mm;

4. Yo'lga chiqadigan zarbasi: vertikal: 10 mm; gorizontal: 10 mm; ko'tarish: 12 mm (shkalasisiz);

5. ish bilan shug'ullanish: 0 - 360}

6. Asboblar kattalashtirish: 50 ×

Maqsadli linzalar kattalashtirish: 2.5 ×

Proektsion ob'ektiv linzalar kattalashtirish: 20 ×;

7. Yorug'lik manbai (viggsten glyogen chiroqchasi): 12v / 100w;

8. Quvvat ta'minoti: 220V / 50Hz;

9. o'lchamlari: 515 × 603 × 603mm (uzunlik × keng);

10. vazn: taxminan 18 kg .

1. Test uskunalari, Xitoyning yuqori texnologiyali korxonalarini ishlab chiqarishda o'n uch yillik tajriba va mahsulot sifatini kafolatlaydi!

2. Bizning kompaniyamizga o'ndan ortiq odamlardan iborat bo'lib, o'ndan ortiq odamlardan iborat bo'lib, ular sizning ehtiyojlaringizga qarab eng tez tezlikda turli xil test uskunalaridan iborat bo'lib, ular sizning ehtiyojlaringiz va mahsulot texnologiyasi rivojlangan!

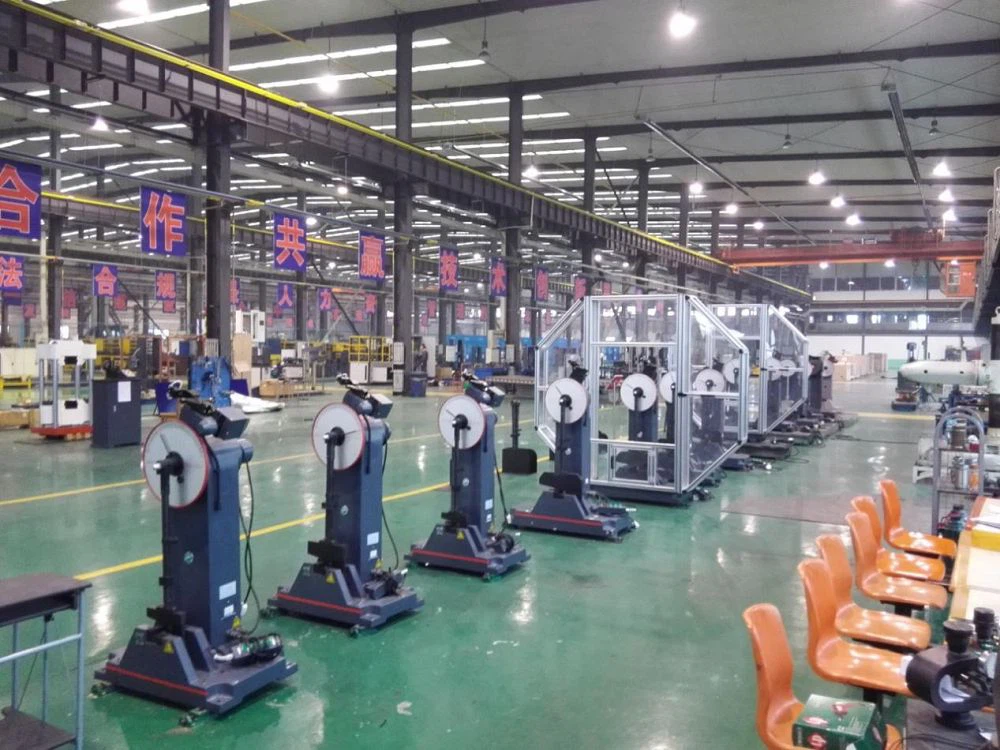

3. Kompaniya o'z ishbilarmonlik ustaxonasi va o'rnatish ustaxonasi, ilg'or ishlov berish uskunalari, amaliy testlar va shuning uchun qat'iy sinov vositalari va shuning uchun etkazib berish o'z vaqtida va sifat kafolatlanadi!

4. Bizning mahsulotlarimiz butun dunyo bo'ylab va yaxshi obro'ga ega!
